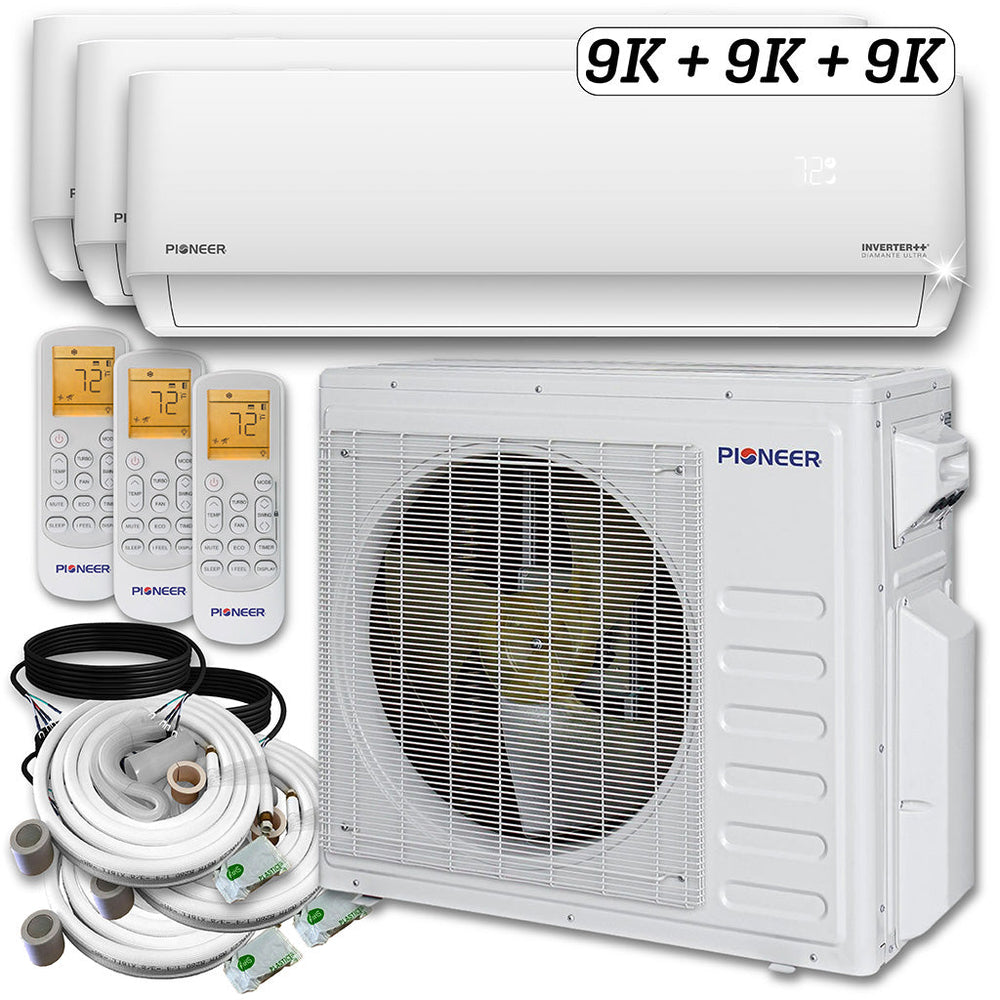

Triple Split 27000 BTU 2.25-Ton Diamante Ultra Wi-Fi 22 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt
$2,607.00
Overview
Summary
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Diamante series multi spl...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Diamante series multi split systems are available in 3 versions; for 2, 3, and 4 zones.
- Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system
- (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 24,000 BTU/H (Range: 7,200 minimum - 26,400 maximum) with 22 SEER/12.5 EER efficiency
- Heating capacity: 26,000 BTU/H nominal (range 7,800 minimum - 28,600 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled
- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Low ambient system can heat with high capacity at-4°F ambient outdoor temperatures
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
