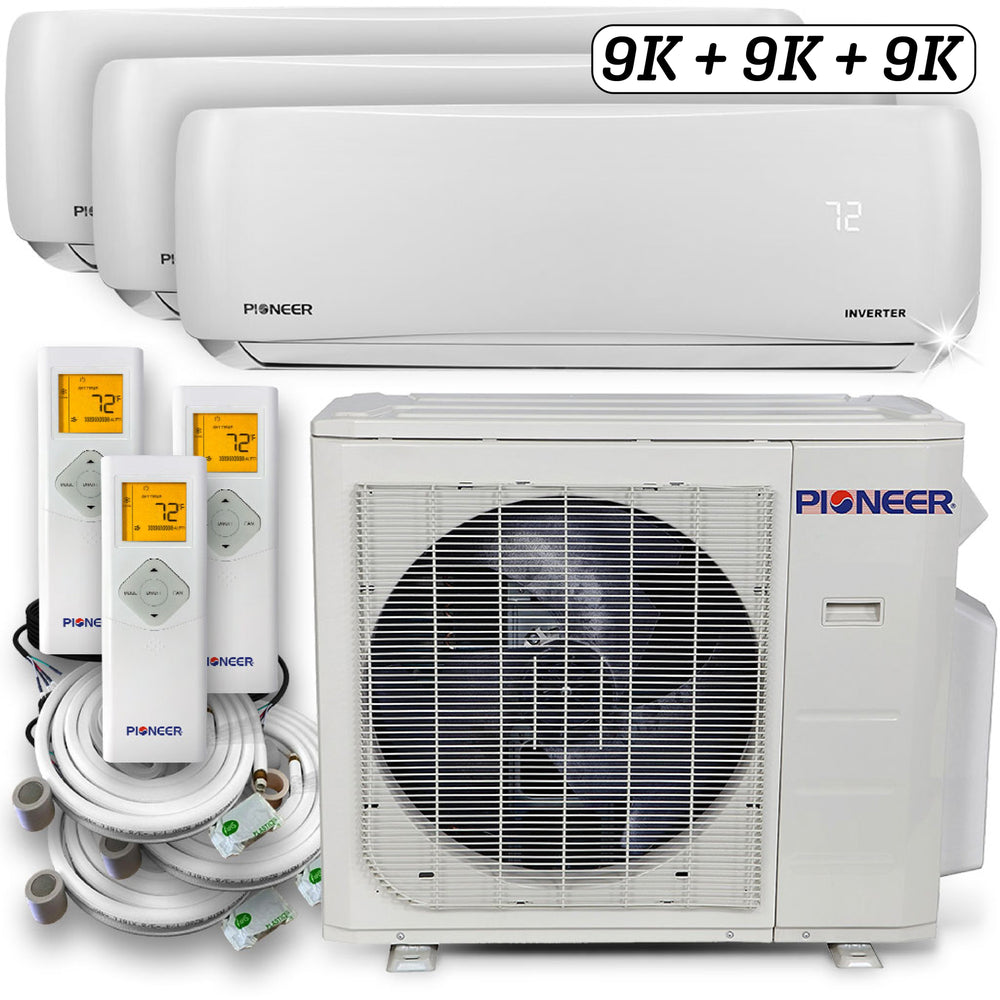

Triple 27,000 BTU 2.25-Ton 23.5 SEER2 Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt
$2,667.00
Overview
Summary
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer multi split systems are a...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer multi split systems are available in 4 versions; for 2, 3, 4 and 5 zones.
- Ultra-high efficiency inverter++ ductless multi split trio (3) zone heat pump system
- (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 27000 BTU/H (Range:6,630 minimum - 30,600 maximum) with 23.5 SEER2 efficiency
- Heating capacity:28,000 BTU/H nominal (range 3,690 minimum - 32,860 maximum) with 9.2 HSPF2 efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with optional wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Low ambient system can heat down to -13°F ambient outdoor temperatures
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Outdoor Unit Manuals
Indoor Unit Manuals
