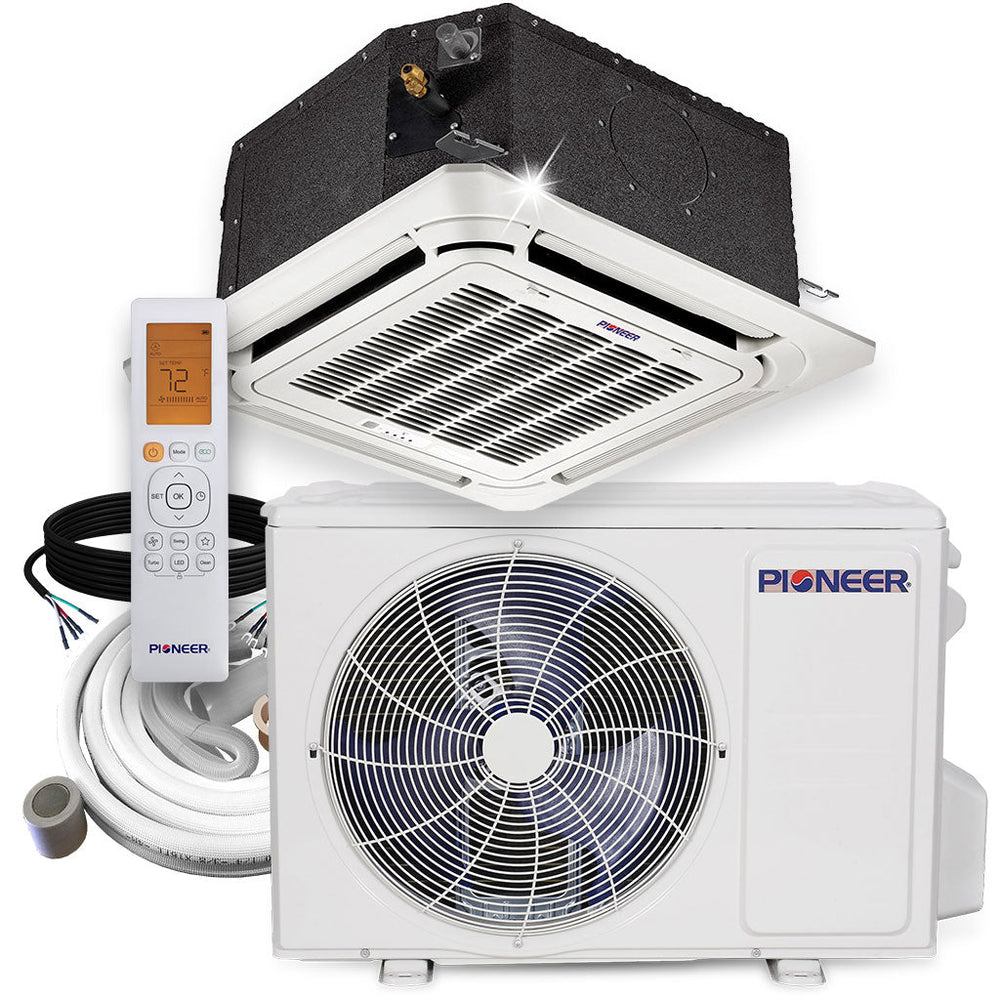

Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
$1,348.00
Overview
Summary
Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
Cooling capacity: 9,000 BTU/H with 20 SEER2 / 13 EER2 efficiency
Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.08 COP2 efficiency
Voltage: 208~230 V, 60 Hertz, 1...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 9,000 BTU/H with 20 SEER2 / 13 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.08 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $59.00
- Heating: $201.00
What's Included
- Indoor Unit
- Outdoor Unit
- Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,970~10,500 BTU/h
- Cooling SEER2: 20.0 BTU /W.h
- Cooling EER2: 13.0 BTU /W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,230~11,650 BTU/h
- Heating HSPF2: 10.0 BTU/W.h
- Heating C.O.P.2: 3.08 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~350 Sq.F
Indoor Unit Data
- Model: CB009GMFILCFHD
- Air Flow (Hi/Med/Lo): 309 / 265 / 200 CFM
- Sound Level (Hi/Med/Lo): 37.5 / 34.5 / 31.5 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 32 / 38 Lbs
Panel Data
- Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 6 / 10 Lbs
Outdoor Unit Data
- Model: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
- Net / Gross Weight: 64 / 69 Lbs
- Breaker Needed: 15A (double-pole)
