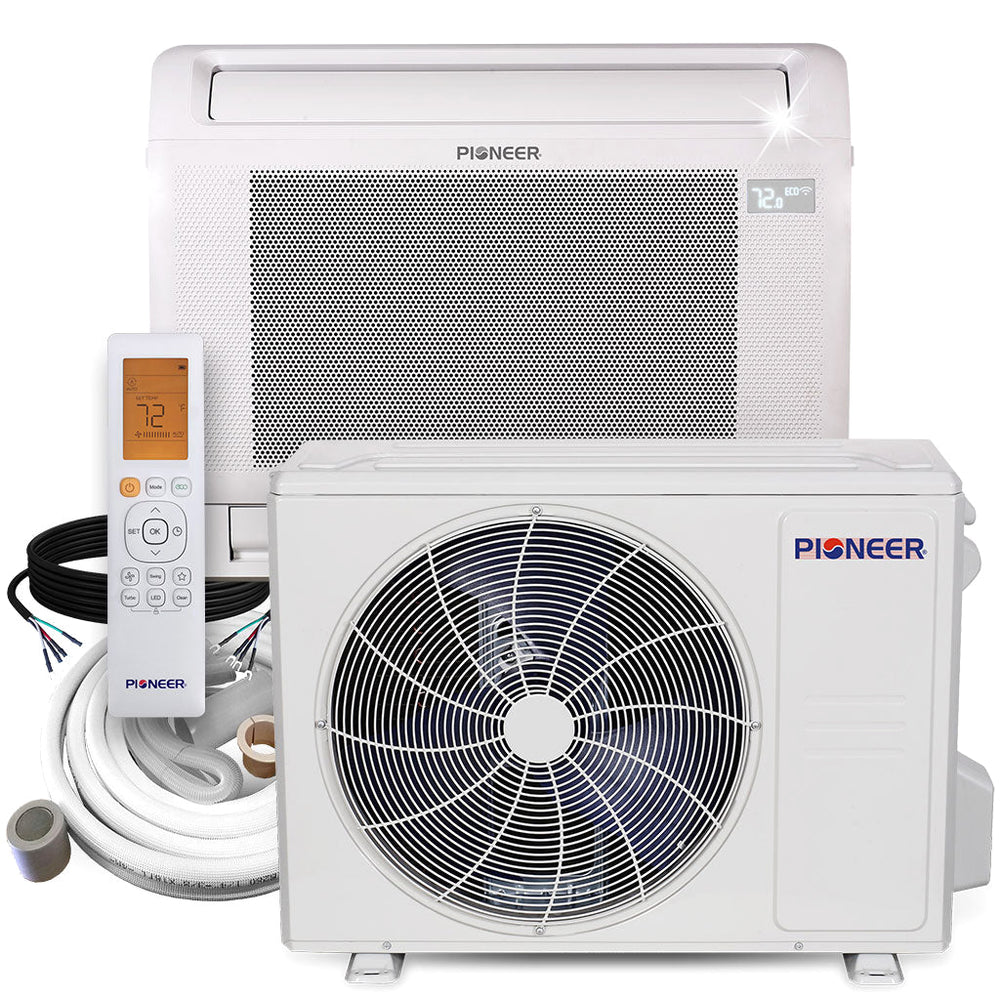

Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

CSC Tools Product

Pioneer® 18,000 BTU 22.4 SEER2 Floor Console Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

$1,683.00
Overview Summary Ultra High Efficiency Inverter++ floor console split heat pump system Cooling capacity: 16,000 BTU/H with 22.4 SEER2 / 12.5 EER2 efficiency Heating capacity: 17,000 BTU/H with 10.4 HSPF2 / 3.00 COP efficiency Voltage: 208~230 V, 60 Hertz, ...
Contractor Focused Responsive Support Ships from Trusted Suppliers

Need Help With This Product?

Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.

Contact CSC Request a Product

Product Details

Overview

Summary

  • Ultra High Efficiency Inverter++ floor console split heat pump system
  • Cooling capacity: 16,000 BTU/H with 22.4 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 17,000 BTU/H with 10.4 HSPF2 / 3.00 COP efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor Console Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
    [[SERIES]]

    What's Included

    • Indoor Unit
    • Outdoor Unit
    • Wireless Remote Control
    • Various Installation Kit Options Available
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

    Our Guarantee

    • 5 year parts limited warranty
    • 5 year compressor limited warranty

    Features

    [[FEATURES]]

    Technical Information

    Certifications

    Pioneer Mini Split Certifications

    Performance Data

    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 16,000 BTU/h
    • Cooling Capacity Range: 6,600~17,200 BTU/h
    • Cooling SEER2: 22.4 BTU/W.hr
    • Cooling EER2: 12.5 BTU/W.hr
    • Heating Rated Capacity: 17,000 BTU/h
    • Heating Capacity Range: 6,800~21,6800 BTU/h
    • Heating HSPF: 10.4 BTU/w
    • Refrigerant Type: R410a
    • Suitable Area: 350~600 Sq.F

    Indoor Unit Data

    • Model Number: FB018GMFILDFHE
    • Air Flow (Hi/Med/Lo): 500 / 441 / 382 / 323 CFM
    • Sound Level (Hi/Med/Lo): 45.0 / 43.5 / 30.5 dB(A)
    • Net Dimensions (WDH): 31-1/4 x 7-7/8 x 24-1/2 Inches
    • Carton Dimensions (WDH): 34 x 11 x 28-1/4 Inches
    • Net / Gross Weight: 32.8 / 41.5 Lbs

    Outdoor Unit Data

    • Model Number: YN018GMFI22RPE
    • Sound Level: 58 dB(A)
    • Breaker Needed: 20A (double-pole)
    • Expansion Device Type: EXV
    • Net Dimensions (WDH): 35 x 13-1/2 x 26-1/2 Inches
    • Carton Dimensions (WDH): 39-1/4 x 15-5/8 x 29-1/8 Inches
    • Net / Gross Weight: 94.4 / 101 Lbs
