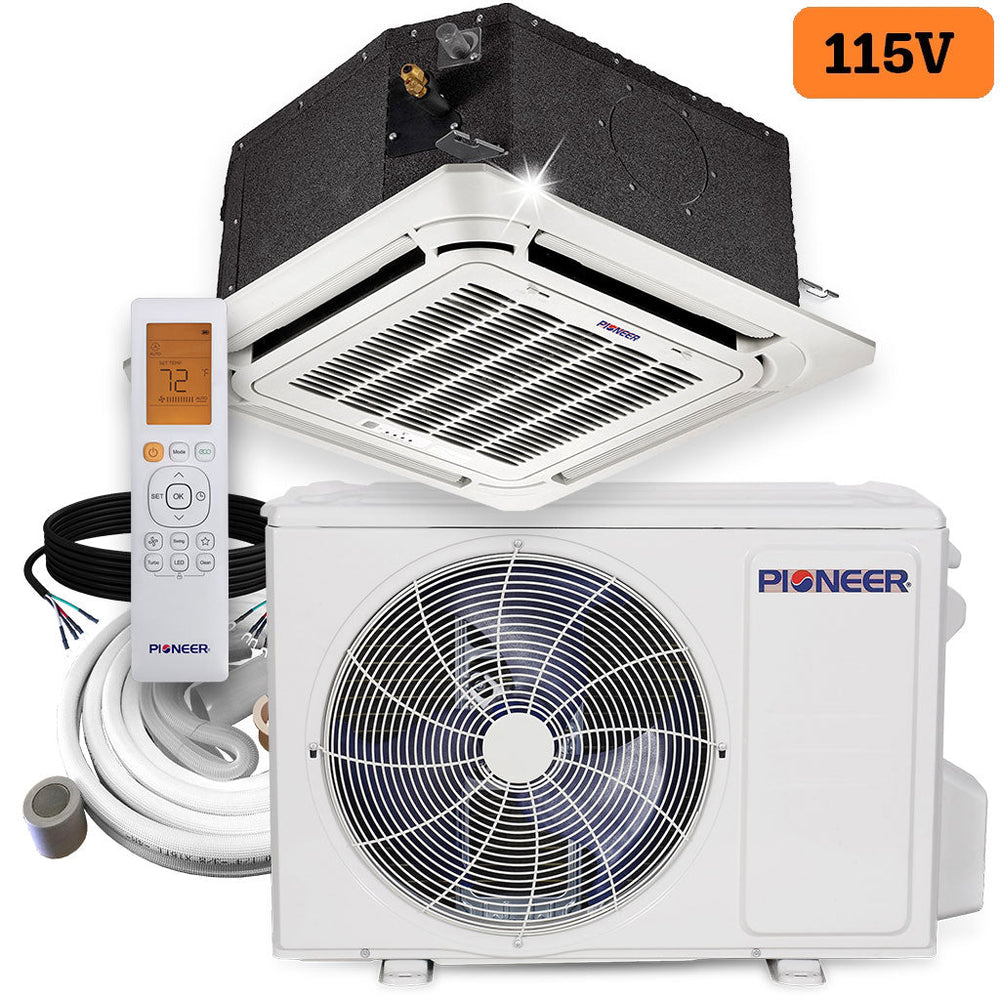

Pioneer® 12,000 BTU 21.5 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set
$1,763.00
Overview
Summary
Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
Heating capacity: 12,000 BTU/H with 10.5 HSPF efficiency
Voltage: 110~120V, 60 Hertz, 1 Ph
Ceiling Compact C...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
- Heating capacity: 12,000 BTU/H with 10.5 HSPF efficiency
- Voltage: 110~120V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $70.00
- Heating: $231.00
What's Included
- Indoor Unit
- Outdoor Unit
- Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,200~17,000 BTU/h
- Cooling SEER: 21.5 BTU/w
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,300~17,100 BTU/h
- Heating HSPF: 10.5 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 350~450 Sq.F
Indoor Unit Data
- Model: CB012GMFILCFHD
- Air Flow (Hi/Med/Lo): 379 / 309 / 261 CFM
- Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 36.0 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 35 / 41 Lbs
Panel Data
- Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 6 / 10 Lbs
Outdoor Unit Data
- Model: YN012AMFI22RPD
- Sound Level: 57.5 dB(A)
- Net Dimensions (WDH): 31.5 x 13.2 x 21.7 Inches
- Carton Dimensions (WDH): 36.2 x 15.4 x 24.3 Inches
- Net / Gross Weight: 81 / 88 Lbs
