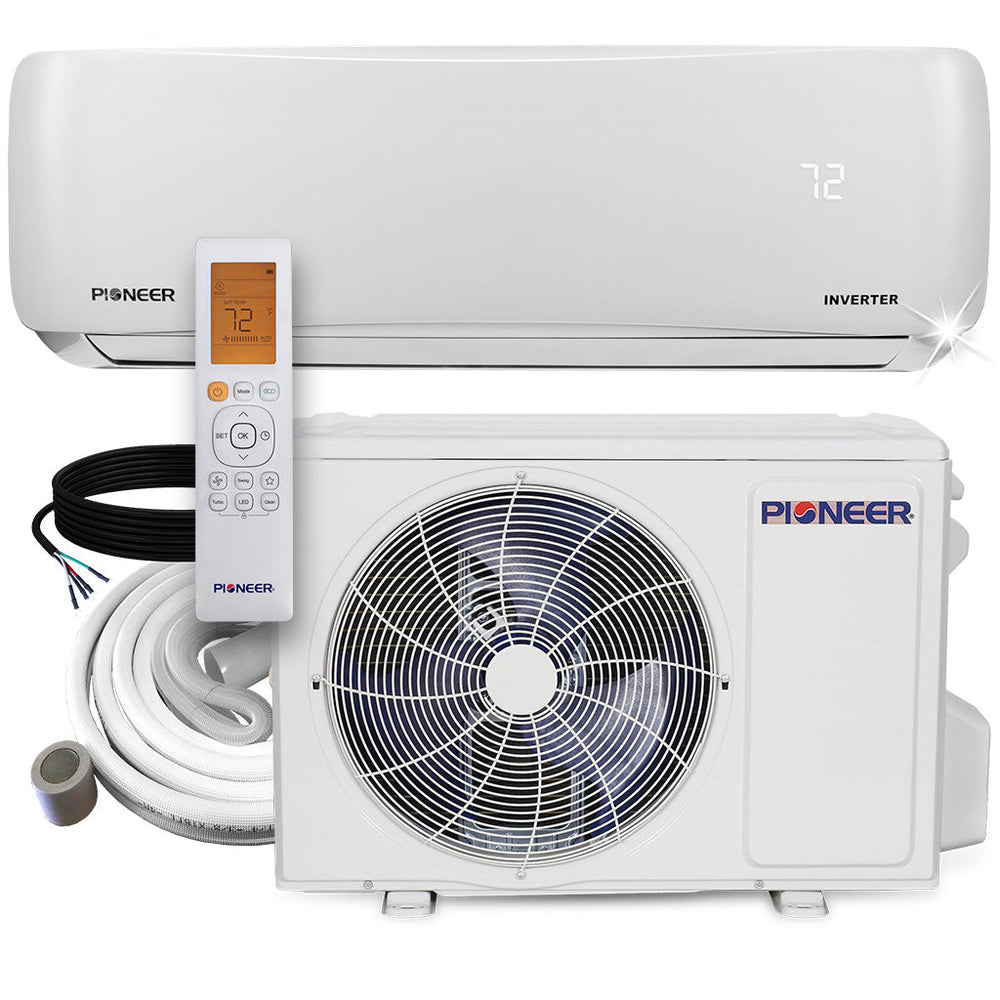

Pioneer® 12,000 BTU 21.4 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V
$803.00
Overview
Summary
High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
Cooling capacity: 12,000 BTU/H with 21.4 SEER2 / 10.8 EER2 efficiency
Heating capacity: 12,000 BTU/H with 9.1 HSPF2 / 3.23 COP2 efficiency
Voltage: 208~230V, 60...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 21.4 SEER2 / 10.8 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.1 HSPF2 / 3.23 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $77.00
- Heating: $254.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,800~12,850 BTU/h
- Cooling SEER2: 21.40 BTU/W.h
- Cooling EER2: 10.80 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 2,730~12,500 BTU/h
- Heating HSPF2 (Region IV/V): 9.1 / 6.9 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.23 / 1.68 W/W
- Refrigerant Type: R410A/28.6 oz.
- Suitable Area: 250~450 Sq.F
Indoor Unit Data
-
Part Number: WS012GMFI20HLD
- Air Flow (Hi/Med/Lo): 317 / 207 / 144 CFM
- Sound Level (Hi/Med/Lo): 37 / 30 / 22.5 dB(A)
- Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8 Inches
- Carton Dimensions (WDH): 34"-1/2 x 11"-1/4 x 15" Inches
- Net / Gross Weight: 19.8 / 25 Lbs
Outdoor Unit Data
- Part Number: YN012GMFI20RPD
- Sound Level: 55.5 dB(A)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8 Inches
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24" Inches
- Net / Gross Weight: 59.3 / 64.8 lbs
- Breaker Needed: 15A (double-pole)
