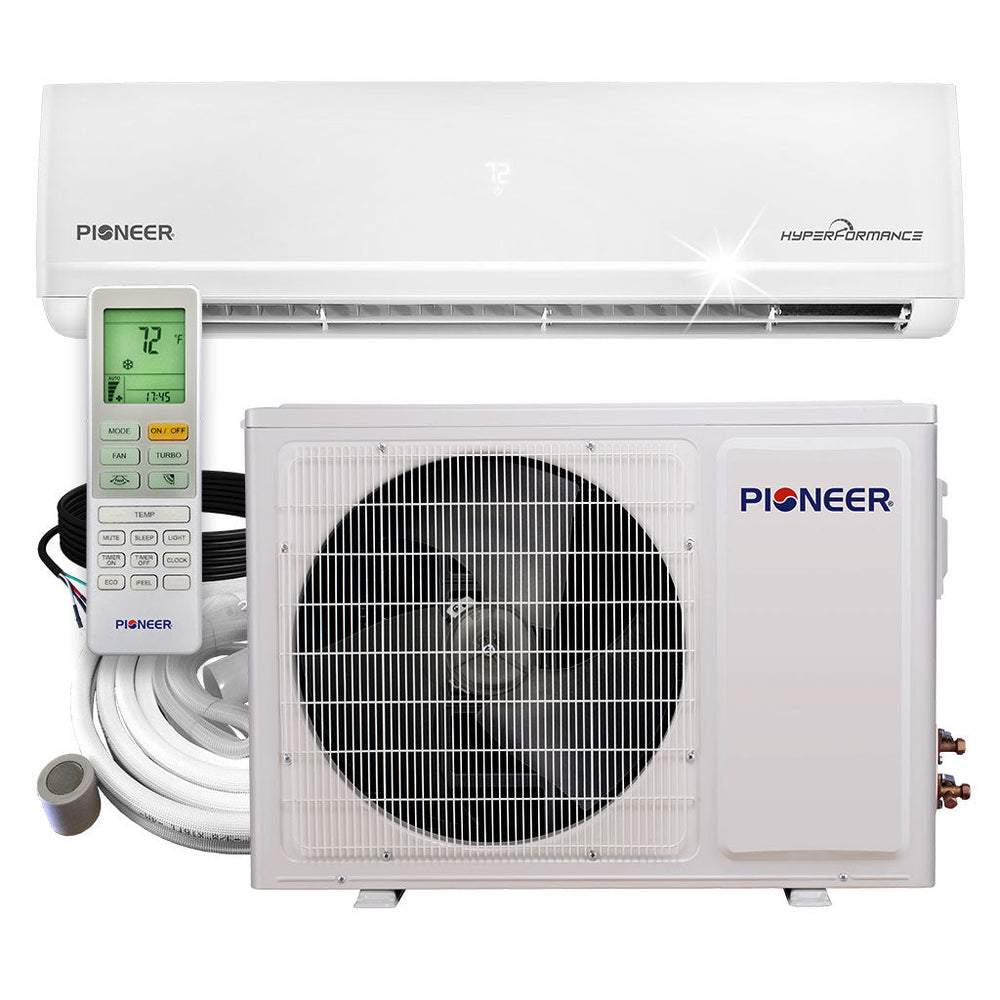

Pioneer® Hyperformance™ 9,000 BTU 25.5 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V
$1,108.00
Overview
Summary
Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
Cooling capacity: 9,000 BTU/H (0.75 Ton) with 25.5 SEER2 / 14.5 EER2 efficiency
Heating capacity: 10,000 BTU/H (0.83 Ton) with 10.5 HSPF2 / 4.07 COP efficiency
Vo...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 9,000 BTU/H (0.75 Ton) with 25.5 SEER2 / 14.5 EER2 efficiency
- Heating capacity: 10,000 BTU/H (0.83 Ton) with 10.5 HSPF2 / 4.07 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
*If ordered with an installation kit
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]
Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity (BTU/hr): 9,000 (3,000 ~ 12,000)
- Rated Power Input (Cooling): 620W
- Rated Current (Cooling): 2.8A
- Cooling SEER2: 25.5 BTU/W.h
- Cooling EER2: 14.5 BTU/W.h
- Heating Rated Capacity (BTU/hr): 10,000 (3,000 ~ 14,000)
- Rated Power Input (Heating): 720W
- Rated Current (Heating): 3.2A
- Heating HSPF2 (Region IV/V): 12 / 10.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.07 / 2.2 W/W
-
Refrigerant Type: R410A
- Recommended Application Area: 100~400 Sq.Ft
Indoor Unit Data
- Part Number: WF009GHFI25HLH
- Air Flow (Hi/Med/Lo): 365 / 306 / 253 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/35/32/29 dB(A)
- Net Dimensions (WDH): 33-1/2 x 8-1/8 x 10-5/8 Inches
- Carton Dimensions (WDH): 35-1/2 x 10-1/4 x 13-1/8 Inches
- Net / Gross Weight: 18.7 / 23.1 Lbs
Outdoor Unit Data
- Part Number: YN009GHFI25RPH
-
Sound Level: 53 dB(A)
- Net Dimensions (WDH): 31-7/8 x 11 x 23 Inches
- Carton Dimensions (WDH): 37 x 15-1/8 x 25-1/4 Inches
- Net / Gross Weight: 72.6 / 79.2 lbs
- Electrical Circuit Size: 15A (double-pole)
