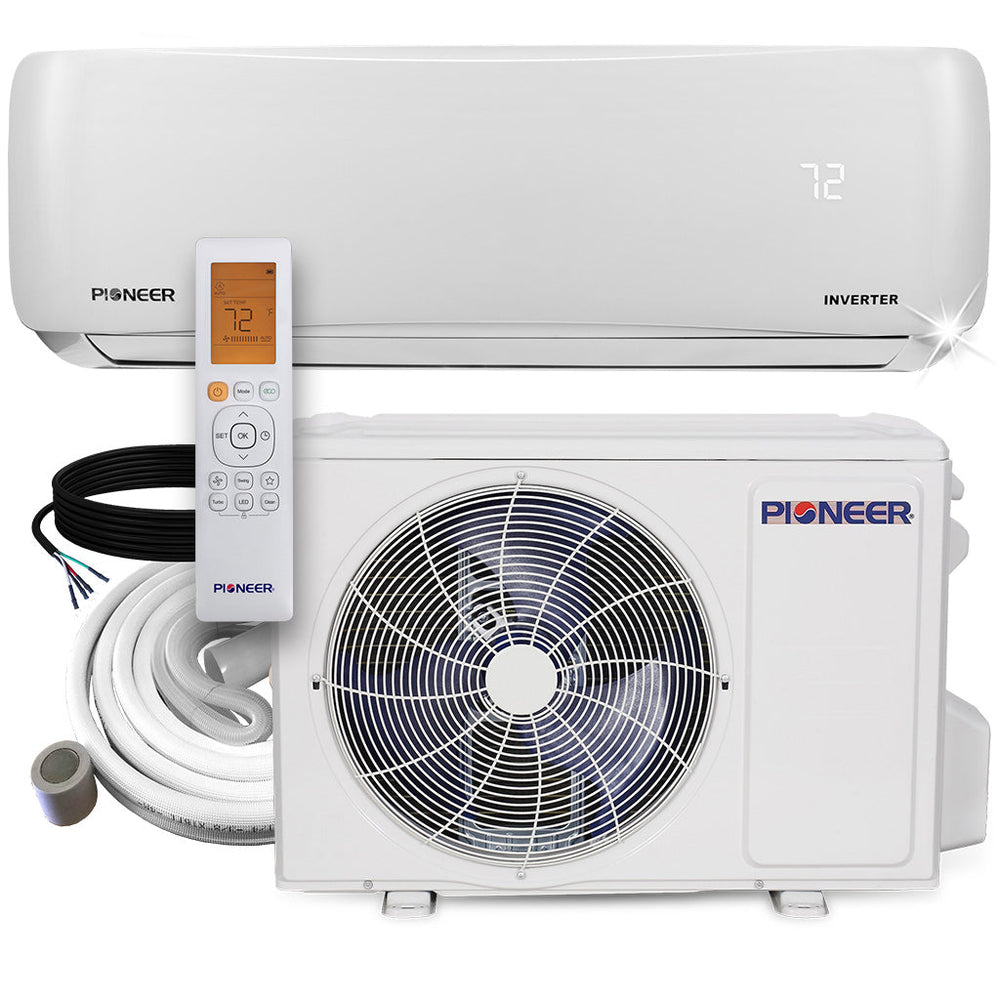

Pioneer® EStar™ 9,000 BTU 24 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
$898.00
Overview
Summary
Ultra High Efficiency Inverter++ ductless mini split heat pump system
Cooling capacity: 9,000 BTU/H with 24 SEER2 / 14 EER2 efficiency
Heating capacity: 9,800 BTU/H with 11.4 HSPF2 / 3.8 COP2 efficiency
Voltage: 208~230 V, 60 Hertz, 1Ph
H...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 9,000 BTU/H with 24 SEER2 / 14 EER2 efficiency
- Heating capacity: 9,800 BTU/H with 11.4 HSPF2 / 3.8 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $50.00
- Heating: $187.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 3,548~11,400 BTU/h
- Cooling SEER2: 24 BTU/W.h
- Cooling EER2 (95F): 14 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 3,976~12,477 BTU/h
- Heating HSPF2 (Region IV/V): 11.4 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.80 / 2.18 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~350 Sq.F
Indoor Unit Data
- Model Number: WS009GMFI22HLE
- Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
- Sound Level (Hi/Lo): 39.0 / 24.5 dB(A)
- Net Dimensions (WDH): 31.5 x 7.3 x 11.6 Inches
- Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
- Net / Gross Weight: 18 / 22 Lbs
Outdoor Unit Data
- Model Number: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30.2 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 34.9 x 13.2 x 24 Inches
- Net / Gross Weight: 64 / 69 Lbs
