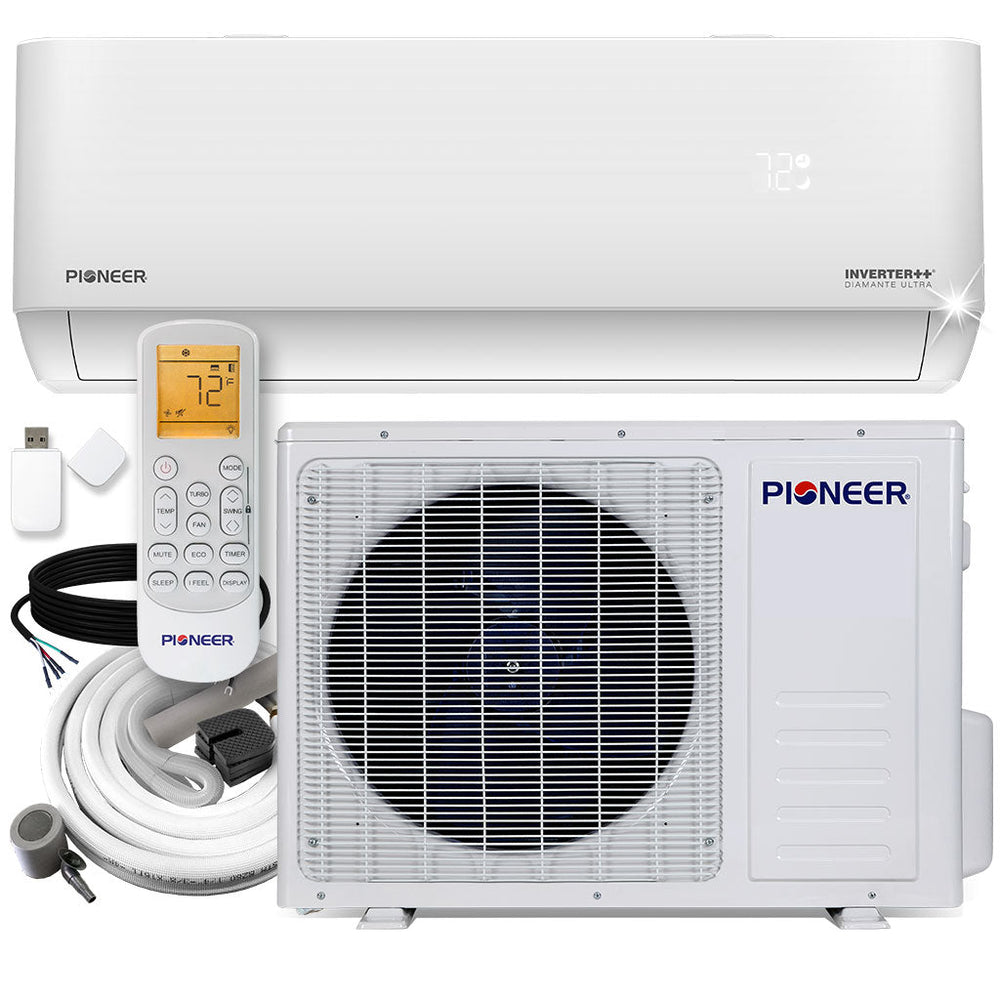

Pioneer® Diamante Ultra 9,000 BTU 23.5 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit
$978.00
Overview
Summary
Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
Cooling capacity: 9,000 BTU/H with 23.5 SEER2 / 13 EER2 efficiency
Heating capacity: 9,500 BTU/H with 9.2 HSPF2 / 3.5 COP efficiency
Voltage: 208/230V, 60Hz, 1Ph
H...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 23.5 SEER2 / 13 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.2 HSPF2 / 3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $52.00
- Heating: $201.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
- Rated Power Input (Cooling): 710W
- Cooling SEER2: 23.5 BTU/W.h
- Cooling EER2: 13 BTU/W.h
- Heating Rated Capacity: 9,600 BTU/h (0.8 Ton)
- Rated Power Input (Heating): 730W
- Heating HSPF2: 9.2 BTU/W.h
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 100~350 Sq.Ft
Indoor Unit Data
- Part Number: WT009GLFI22HLD
- Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
- Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
- Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
- Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs
Outdoor Unit Data
- Part Number: YN009GLFI22RPD
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 51.4 / 55.8 Lbs
- Electrical Circuit Size: 15A (double-pole)
