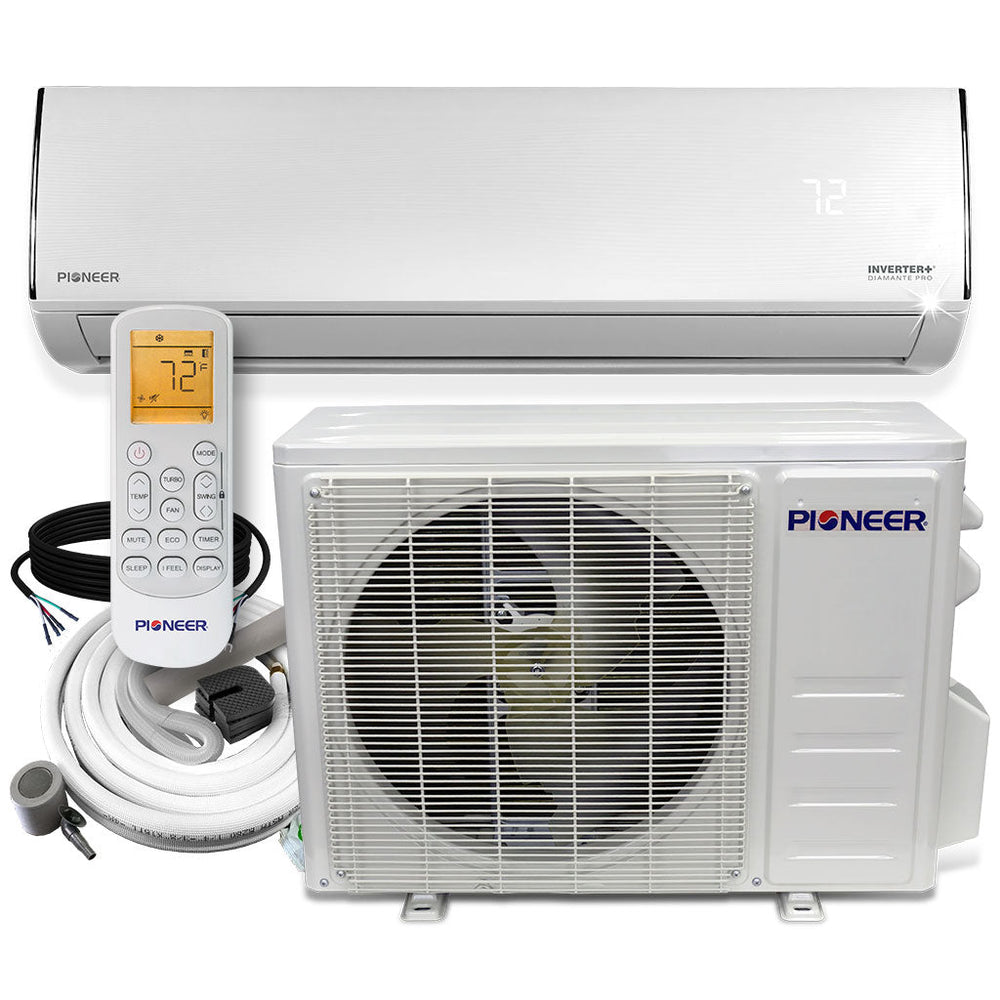

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit
$788.00
Overview
Summary
High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
Voltage: 110/120V, 60Hz, 1Ph
High Wall...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
- Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $79.00
- Heating: $254.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,600~13,200 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 12,200 BTU/h
- Heating Capacity Range: 3,700~13,500 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
- Refrigerant Type: R410A
- Suitable Area: 200~450 Sq.F
Indoor Unit Data
- Part Number: WT012ALFI19HLE
- Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
- Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
- Net / Gross Weight: 19.8 / 26.5 lbs
Outdoor Unit Data
- Part Number: YN012ALFI19RPE
- Breaker Needed: 20A (single-pole)
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches
- Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches
- Net / Gross Weight: 55 / 66.1 lbs
