Pioneer® 24,000 BTU 16.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

$2,898.00
Overview Summary Ultra High Efficiency Inverter+ central ducted split heat pump system Cooling capacity: 22,000 BTU/H with 16.5 SEER2 / 10.1 EER2 efficiency Heating capacity: 26,000 BTU/H with 9 HSPF2 / 3.4 COP2 efficiency Voltage: 208~230 V, 60 Hertz, 1 P...
Contractor Focused Responsive Support Ships from Trusted Suppliers

Need Help With This Product?

Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.

Contact CSC Request a Product

Product Details

Overview

Summary

  • Ultra High Efficiency Inverter+ central ducted split heat pump system
  • Cooling capacity: 22,000 BTU/H with 16.5 SEER2 / 10.1 EER2 efficiency
  • Heating capacity: 26,000 BTU/H with 9 HSPF2 / 3.4 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Central Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Energy-Star Cold-Climate Certified
  • Communicating system with dedicated signal transmission
  • Includes 5 kW Electric Strip Heater
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $176.00
    • Heating: $507.00
[[SERIES]]

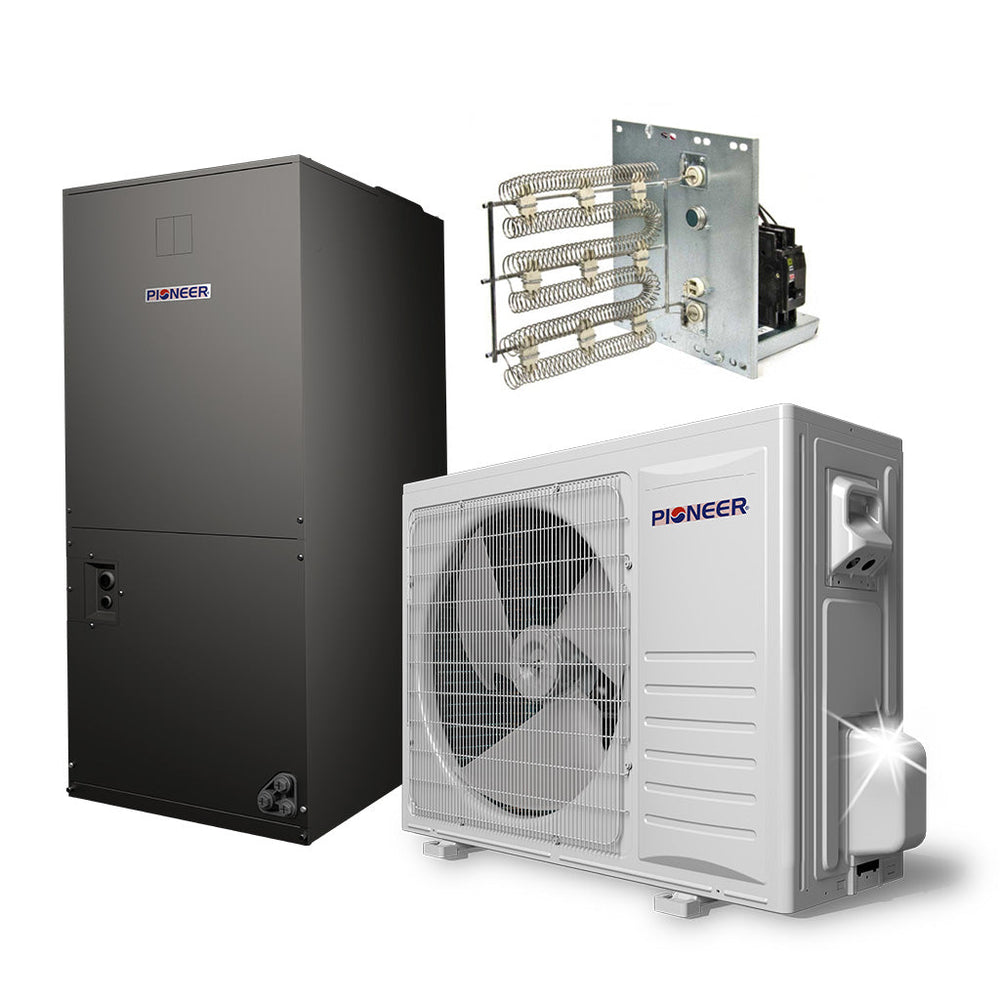

What's Included

  • Indoor Unit (Downflow-capable)
  • Outdoor Unit (Side-Discharge)
  • Electric Strip Heater (5 kW w/ breaker)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 years compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Max Cooling Rated Capacity (Min~Max): 22,000 (7,200~26,000) BTU/h
  • Cooling SEER2: 16.5 BTU/W.h
  • Cooling EER2: 10.1 BTU/W.h
  • Max Heating Rated Capacity (Min~Max): 26,000 (8,900 ~ 26,000) BTU/h
  • Heating HSPF2 (Region IV): 9.0 BTU/w
  • Heating C.O.P.2 (47°F/5°F): 3.4 / 2.16 W/W
  • Refrigerant Type: R-410a
  • Suitable Area: 800 Sq.F
  • Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)

Indoor Unit Data

  • Model: DR024GHFD18HT2
  • Air Flow: 800 CFM
  • Sound Level: 55 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 19-5/8 × 21-5/8 x 46-1/8 Inches
  • Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
  • Net / Gross Weight: 136 / 159 Lbs

Outdoor Unit Data

  • Model: YH1824GHFD18R2
  • Sound Level: 54 dB(A)
  • Metering Device: EXV
  • Net Dimensions (WDH): 33-7/8 × 12-1/4 × 26-3/8 Inches
  • Carton Dimensions (WDH): 39 × 17-3/4 × 28-3/4 Inches
  • Net / Gross Weight: 112 / 121 Lbs
