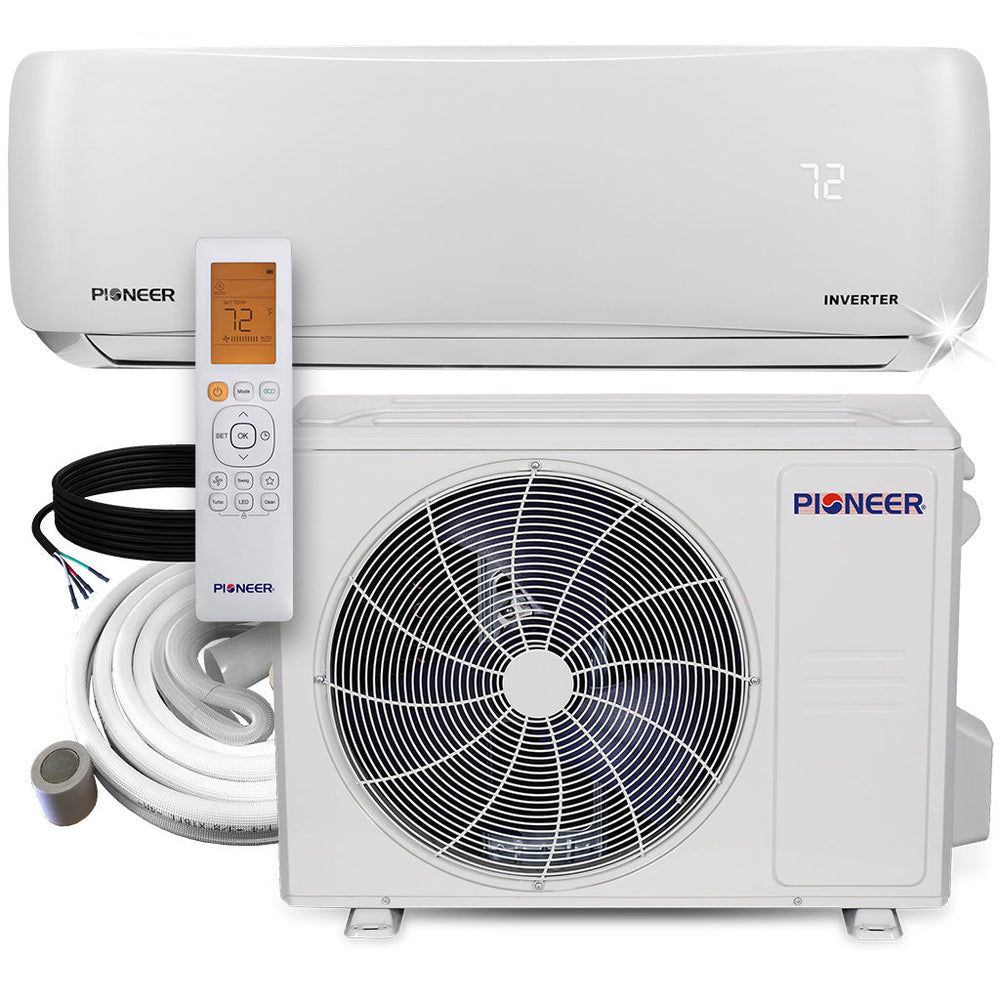

Pioneer® 18,000 BTU 19 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V
$1,053.00
Overview
Summary
High Efficiency Quantum Series Inverter+ ductless mini split heat pump system inverter and air conditioner heat pump system full set
Cooling capacity: 18,000 BTU/H with 19 SEER2 / 10.5 EER2 efficiency
Heating capacity: 18,800 BTU/H with ...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
-
High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
inverter and air conditioner heat pump system full set - Cooling capacity: 18,000 BTU/H with 19 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 18,800 BTU/H with 8.7 HSPF2 / 2.93 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC high-efficiency Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $125.00
- Heating: $397.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 3,900~20,000 BTU/h
- Cooling SEER2: 19 BTU/W.h
- Cooling EER2: 10.5 BTU /W.h
- Heating Rated Capacity: 18,800 BTU/h
- Heating Capacity Range: 6,300~19,400 BTU/h
- Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.93 / 2.1 W/W
- Refrigerant Type: R410A/47.6 oz.
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model Number: WS018GMFI20HLD
- Air Flow (Hi/Med/Lo): 388 / 259 / 218 CFM
- Sound Level (Hi/Med/Lo): 43.5 / 34.5 / 30.0 dB(A)
- Net Dimensions (WDH): 38" x 8"-1/2 x 12"-1/2
- Carton Dimensions (WDH): 41"-1/8 x 12" x 16"-1/8
- Net / Gross Weight: 23.8 / 31.5 lbs
Outdoor Unit Data
- Model Number: YN018GMFI20RPD
- Sound Level: 57 dB(A)
- Net Dimensions (WDH): 31"-5/8 x 13" x 21"-7/8
- Carton Dimensions (WDH): 36" x 14"-5/8 x 24"-1/4
- Net / Gross Weight: 73.9 / 79.8 lbs
- Breaker Needed: 20A (double-pole)
