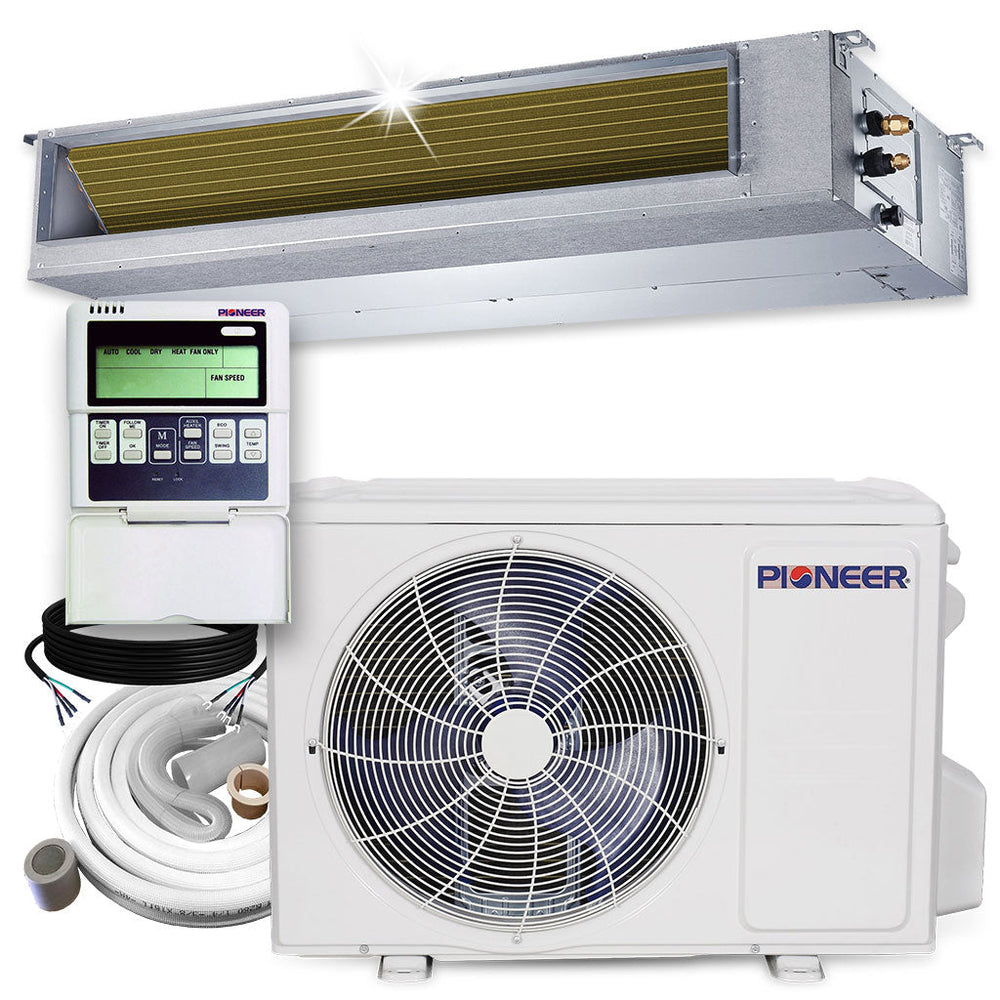

Pioneer® 12,000 BTU 19 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
$1,313.00
Overview
Summary
Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
Cooling capacity: 11,500 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
Heating capacity: 12,000 BTU/H with 10.3 HSPF2 / 3.52 COP2 efficiency
Voltage: 208~230 V, 60...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Overview
Summary
- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 11,500 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 10.3 HSPF2 / 3.52 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $74.00
- Heating: $221.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wire Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 11,500 BTU/h
- Cooling Capacity Range: 2,100~13,450 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 1,900~15,000 BTU/h
- Heating HSPF2 (Region IV/V): 10.3 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.52 / 2.26 W/W
- Refrigerant Type: R410a
- Suitable Area: 250~450 Sq.F
Indoor Unit Data
-
Part Number: RB012GMFILDFHD
- Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
- External Static Pressure: 0 ~ 0.16 Inch WC
- Sound Level (Hi/Med/Lo): 38.0 / 34.5 / 31.0 dB(A)
- Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
- Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
- Net / Gross Weight: 39.2 / 48.5 Lbs
Outdoor Unit Data
- Part Number: YN012GMFI22RPE
- Sound Level: 58 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
- Net / Gross Weight: 63.7 / 69.0 Lbs
