CSC Tools Product

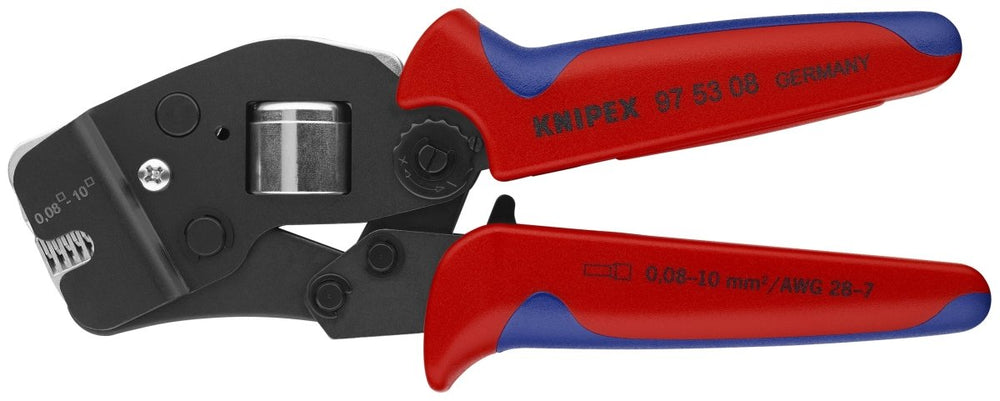

Knipex Self Adjusting Crimping Pliers 7 1/2" 97 53 08
$250.21
Self-adjusting crimping pliers for end sleeves (ferrules) with front loading. For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4. Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 m...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
Self-adjusting crimping pliers for end sleeves (ferrules) with front loading. For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4. Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10. Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory. Optimum transmission of force due to toggle lever for fatigue-reduced operation. High operation comfort thanks to handy shape and low weight. Chrome vanadium electric steel in special quality, oil-hardened.
- Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
- For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
- Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10
- Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Crimping pressure has been set precisely (calibrated) in the factory
- Optimum transmission of force due to toggle lever for fatigue-reduced operation
- High operation comfort thanks to handy shape and low weight
- Chrome vanadium electric steel in special quality, oil-hardened
- Made In Germany
- Limited lifetime warranty
