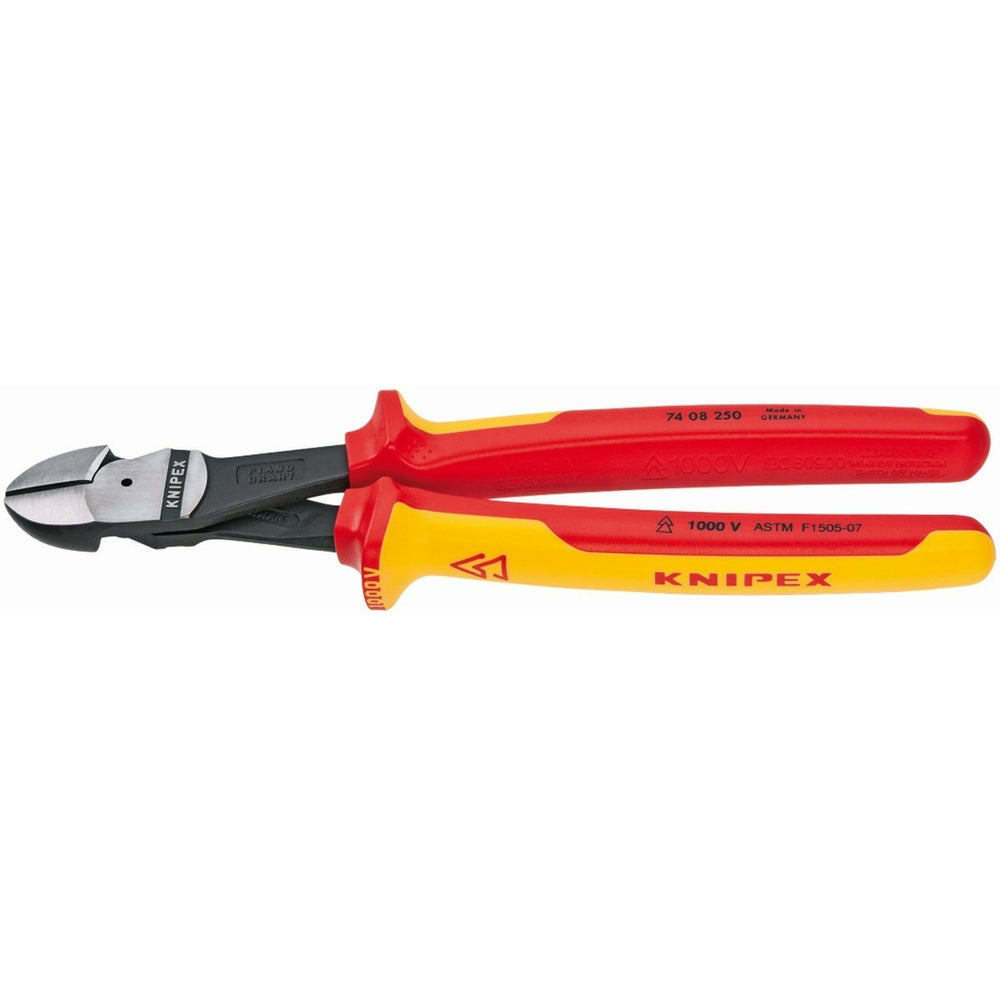

Knipex High Leverage Diagonal Cutters 1000V Insulated 10" 74 08 250 US
$66.41
20% less effort required compared to conventional diagonal cutters of the same length. Forged-on axle for heavy-duty work. For very tough, continuous use. 1000V multi-component grips, ASTM F1505-tested. High cutting performance with minimum effort due to op...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
20% less effort required compared to conventional diagonal cutters of the same length. Forged-on axle for heavy-duty work. For very tough, continuous use. 1000V multi-component grips, ASTM F1505-tested. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire. 10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm². Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.
- Part Number: 74 08 250 US
- UPC: 843221001988
- Country of Origin: Germany
- Length: 10"
- Width: 2 1/4"
- Height: 1 3/16"
- Weight: 1.025 lbs.
- 1000 Volt Insulated: Yes
- Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
- Handle Type: 1000V Insulated, multi-component, ASTM
- Surface Finish: Polished
- Other Surface Finish: Black atramentized
- Joint Type: Forged-in axle
- Cutting Capacity - Piano Wire: 1/8"
- Cutting Capacity - Hard Wire (Steel Wire): 9/64"
- Cutting Capacity - Medium Hard Wire (Nail): 3/16"
- Cutting Edge Shape: Bevel
- Color: Red/Yellow
- DIN: DIN ISO 5749
- Reach: No
- RoHS: No
- Limited lifetime warranty
