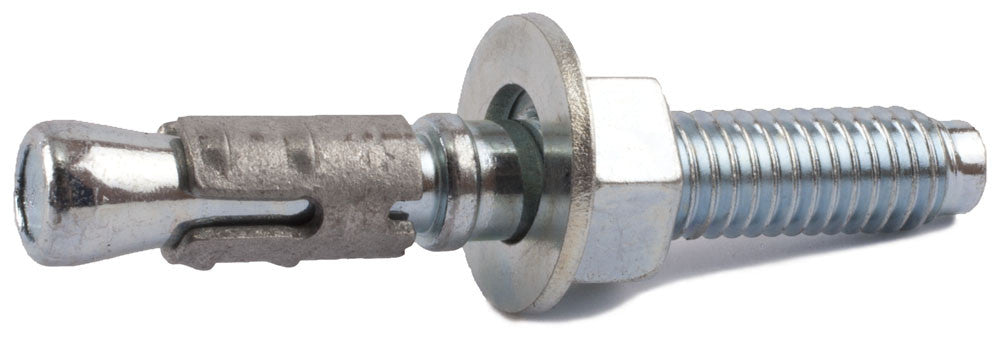

3/4-10 x 6 1/4 STRONG-BOLT® 2 Cracked and Uncracked Concrete Wedge Anchor Zinc Plated (10)

3/4-10 x 6 1/4 STRONG-BOLT® 2 Cracked and Uncracked Concrete Wedge Anchor Zinc Plated (10)

Anchor Wedge Anchor
$45.50
Available to order
Purchasing for a business?

Create a CSC Business Account for easier purchasing, order history, business support, and access to available credit terms.

Explore Business Purchasing
Commercial Supply Built for working customers
Secure Checkout Purchase online through CSC
Need Help? CSC can help with product selection

Product Details

About This Fastener

3/4-10 x 6 1/4 STRONG-BOLT® 2 Cracked and Uncracked Concrete Wedge Anchor Zinc Plated (10) .

  • Category 1 anchor classification: The Strong-Bolt 2 anchor received classification as a Category 1 anchor, which is established by performance in reliability tests in accordance with AC193 and ACI355.2 test criteria. Category 1 is the highest attainable anchor category for reliability.
  • Tri-segmented clip: Each segment adjusts independently, increasing follow-up expansion should the hole increase in size as a result of a crack.
  • Dual embossments on each clip segment: Enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur.
  • The 3/8" anchor solution approved for 3 ¼" concrete thickness: The Strong-Bolt 2 anchor can be installed in cracked concrete with a minimum thickness of 3 ¼", including concrete-over-metal decking.
  • High-strength alloy clip on carbon-steel anchors: This special alloy clip offers improved performance.
  • Standard (ANSI) fr

At a Glance

Fastener Specifications

Fastener type
Anchor
Style
Wedge Anchor
Diameter
3/4"
Thread size
3/4-10
Length
6.25 in
Finish
Zinc Plated
Applications
Concrete / masonry fastening, Decking
CSC SKU
1146224
Need help choosing a fastener?

Review the dimensions, grade and product specifications before ordering. If you need additional product information, contact CSC Tools before placing your order.
