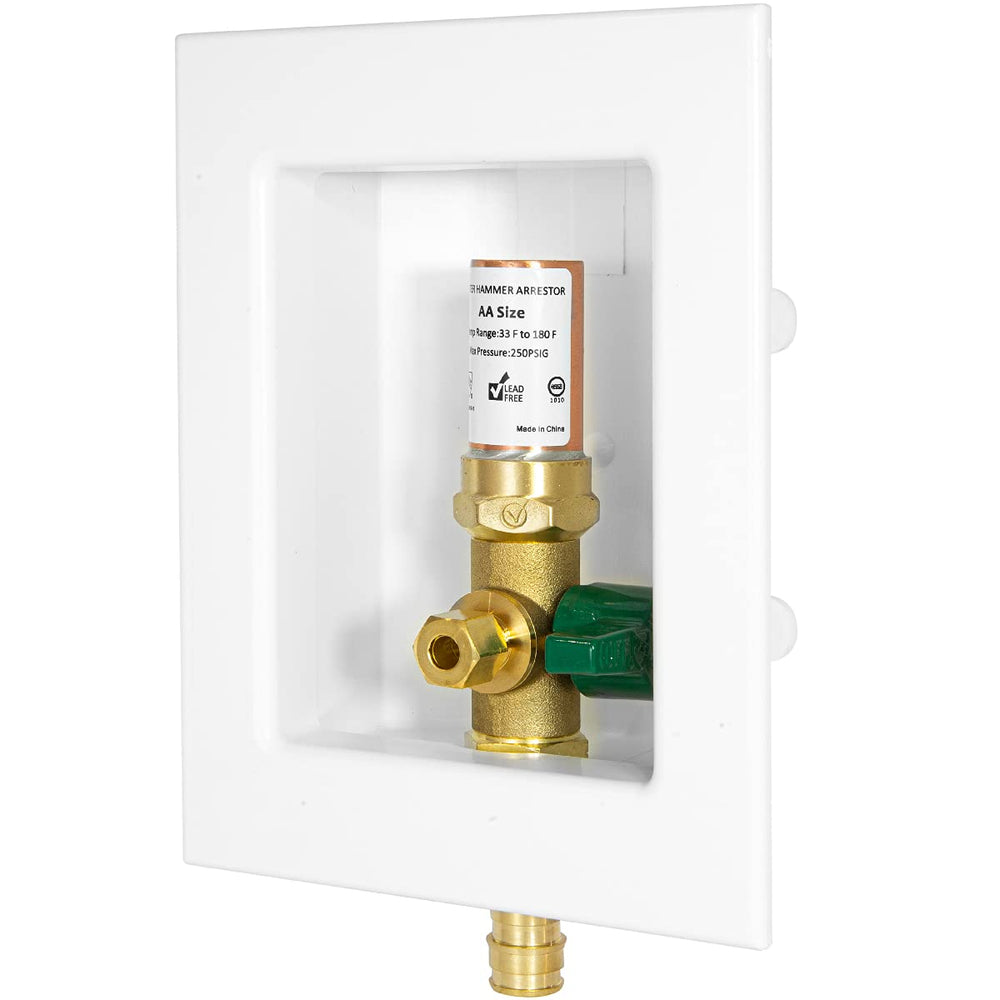

10 Pcs 1/2" PEX Expansion (F1960) Inlet, Ice Maker Outlet Box, with Copper Arrestor
$169.39
Equipped with a 1/2 inch Expansion Pex-A inlet and 1/4 inch OD compression outlet connections.
Pre-installed 1/4 turn Lead Free brass valve with copper hammer Arrestor
Complies with NSF 61-G Requirements (Portable Water Standard)
The Snap-on faceplate dime...
Contractor Focused
Responsive Support
Ships from Trusted Suppliers
Need Help With This Product?
Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.
Product Details
- Equipped with a 1/2 inch Expansion Pex-A inlet and 1/4 inch OD compression outlet connections.
- Pre-installed 1/4 turn Lead Free brass valve with copper hammer Arrestor
- Complies with NSF 61-G Requirements (Portable Water Standard)
- The Snap-on faceplate dimensions are 6-1/2 inch x 5 inch, the rough Opening is 5 inch x 3-1/2 inch x 2-3/4 inch, the box with one-piece box-and-flange design,; No additional support framing required
- This Efield Product is Compatible with Expanding Fitting System, NOT Compatible with Stainless Steel Clamp & Copper Crimp Ring Systems
| Material | Metal |
|---|---|
| Brand | EFIELD |
| Item dimensions L x W x H | 6 x 4 x 2 inches |
| Exterior Finish | Brass |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | PEX-a Expansion |
| Outlet Connection Type | MHT |
| Number of Ports | 2 |
| Outlet Connection Size | 0.25 Inches |
| Specification Met | NSF |
| Valve Type | Ball Valve |
| Manufacturer | EFIELD |
| UPC | 791689823072 |
| Part Number | MH |
| Item Weight | 16 ounces |
| Product Dimensions | 6 x 4 x 2 inches |
| Item model number | MH |
| Pattern | With Copper Arrester |
| Item Package Quantity | 1 |
| Number Of Pieces | 1 |
| Measurement System | inch |
