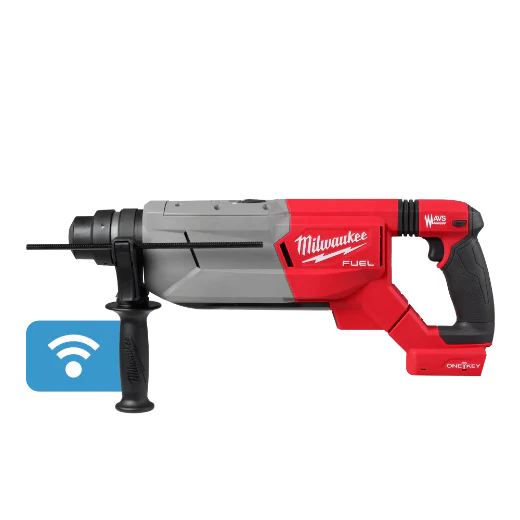

Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™
Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

CSC Tools Product

Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

$399.00
Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ Our M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” H...
Contractor Focused Responsive Support Ships from Trusted Suppliers

Need Help With This Product?

Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.

Product Details

Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

Our M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus 1-9/16" SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. Our in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. Our POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with our M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. Our AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. Our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than our M18™ REDLITHIUM™ XC batteries (not included).

INCLUDES

(1) M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ (2916-20)

KEY FEATURES

Milwaukee 2916-20 M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™

  • POWERSTATE™ Brushless Motor delivers maximum power and long motor life
  • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
  • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
  • 3.65 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • 810 RPM
  • 4,650 BPM
  • Pairs with HAMMERVAC™ 1-1/4” Dedicated Dust Extractor (2916-DE)
  • Part of the M18™ system, featuring over 200+ solutions

PRODUCT SPECIFICATIONS

Rotary Hammer Size: 1-1/4"
Tool Warranty: 5 Year Limited Warranty
Power Source: Cordless
Motor Type: Brushless
Handle Type: D-Handle
Length: 18.3 in
Weight: 9.2 lb
Height: 7.3 in
Width: 3.6 in
Max Capacity: 1-1/4"
Impact Energy: 3.65 ft-lbs
Kickback Prevention: Yes
Anti-Vibration: Yes
Length wBattery: 19.6"
Weight wBattery: 11.5 lbs
Solid Bit Capacity: 1-1/4”
Thin Wall Core Bit Capacity: 2-1/2”
Brushless: Yes
Battery System: M18
Chuck Type: SDS Plus
Chuck Size: SDS-plus
BPM: 4650 bpm
Maximum RPM: 810 rpm
RPM Range: 0-800
