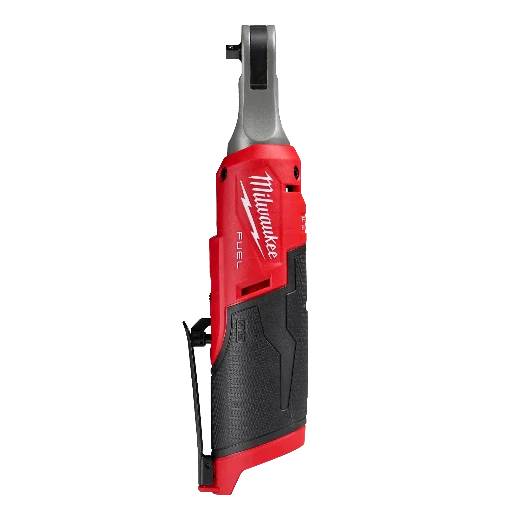

Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only)
Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only) Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only) Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only) Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only)

CSC Tools Product

Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only)

$139.00
Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only) Our M12 FUEL™ 1/4" High Speed Ratchet is part of the latest addition to our best-in-class lineup of ratchets. This MILWAUKEE® cordless ratchet features the fastest speed while installing ...
Contractor Focused Responsive Support Ships from Trusted Suppliers

Need Help With This Product?

Have questions about fit, availability, freight, or whether this is the right product for your job? CSC can help.

Product Details

Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only)

Our M12 FUEL™ 1/4" High Speed Ratchet is part of the latest addition to our best-in-class lineup of ratchets. This MILWAUKEE® cordless ratchet features the fastest speed while installing and removing fasteners. The most compact head size in its class gives you more access in tight spaces. A steel yoke housing and POWERSTATE™ Brushless Motor deliver the superior durability that you expect from Milwaukee. The M12 FUEL™ High Speed Ratchets are an ideal addition to any technician tool chest, allowing you to be more productive than any other battery-powered ratchet.

INCLUDES

(1) M12 FUEL™ 1/4" High Speed Ratchet(2566-20)

KEY FEATURES

Milwaukee 2566-20 M12 FUEL™ 1/4" High Speed Ratchet (Tool Only)

  • Delivers up to 450 RPM for best-in-class productivity
  • 0.75" head profile allows for best-in-class access in tight spaces
  • Up to 35 ft-lbs. of max torque
  • Steel yoke housing for greater durability
  • Ratchet can be used manually without engaging the motor
  • LED light to illuminate work areas
  • On-board battery fuel gauge displays remaining run time
  • Extended paddle switch for multiple grip options
  • Durable proprietary rubber designed to withstand corrosive materials commonly found in maintenance environments
  • POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
  • REDLINK PLUS™ Intelligence prevents damage to the tool and battery due to overloading or overheating
  • REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
  • Part of the M12™ system, featuring 100+ tools

PRODUCT SPECIFICATIONS

Anvil Type: Ball Detent
Maximum Torque: 30.0 ft/lbs
Fastening Torque: 35.0 ft/lbs
Head Profile: 0.8 in
Tool Warranty: 5 Year Tool, 2 Year Battery
Power Source: Cordless
Motor Type: Brushless
Length: 11.1 in
Weight: 2.1 lb
Height: 0.75 in
Width: 1.54 in
Anvil Size: 1/4" Square
Brushless: Yes
Battery System: M12
Chuck Type: Not Applicable
Maximum RPM: 450 rpm
