Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. KitPioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

$1,288.00 $1,699.00
Have a question? Ask here

Description

Overview

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 19 SEER2 / 10.0 EER2 efficiency
  • Heating capacity: 24,400 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode

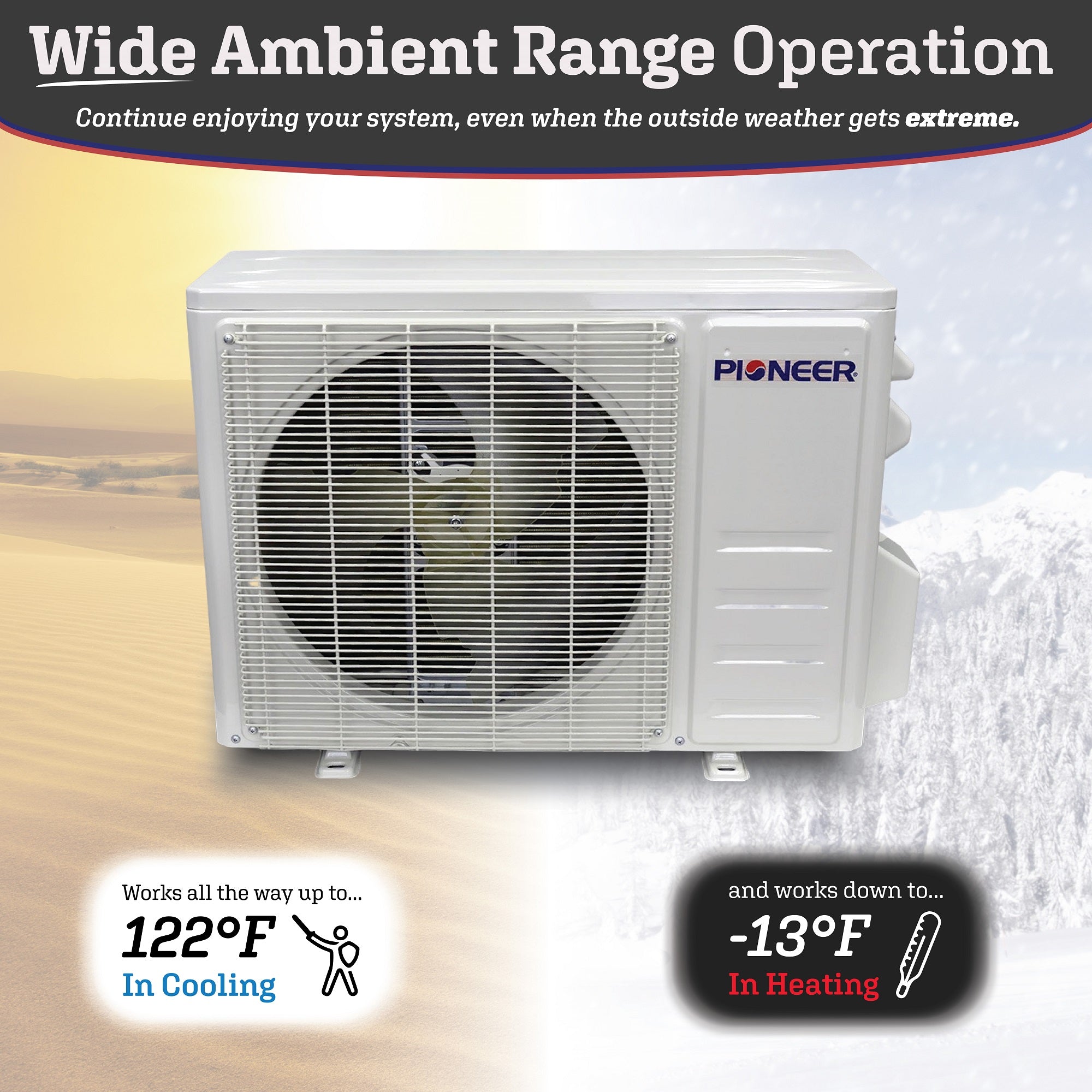

  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $176.00
    • Heating: $516.00
[[SERIES]]

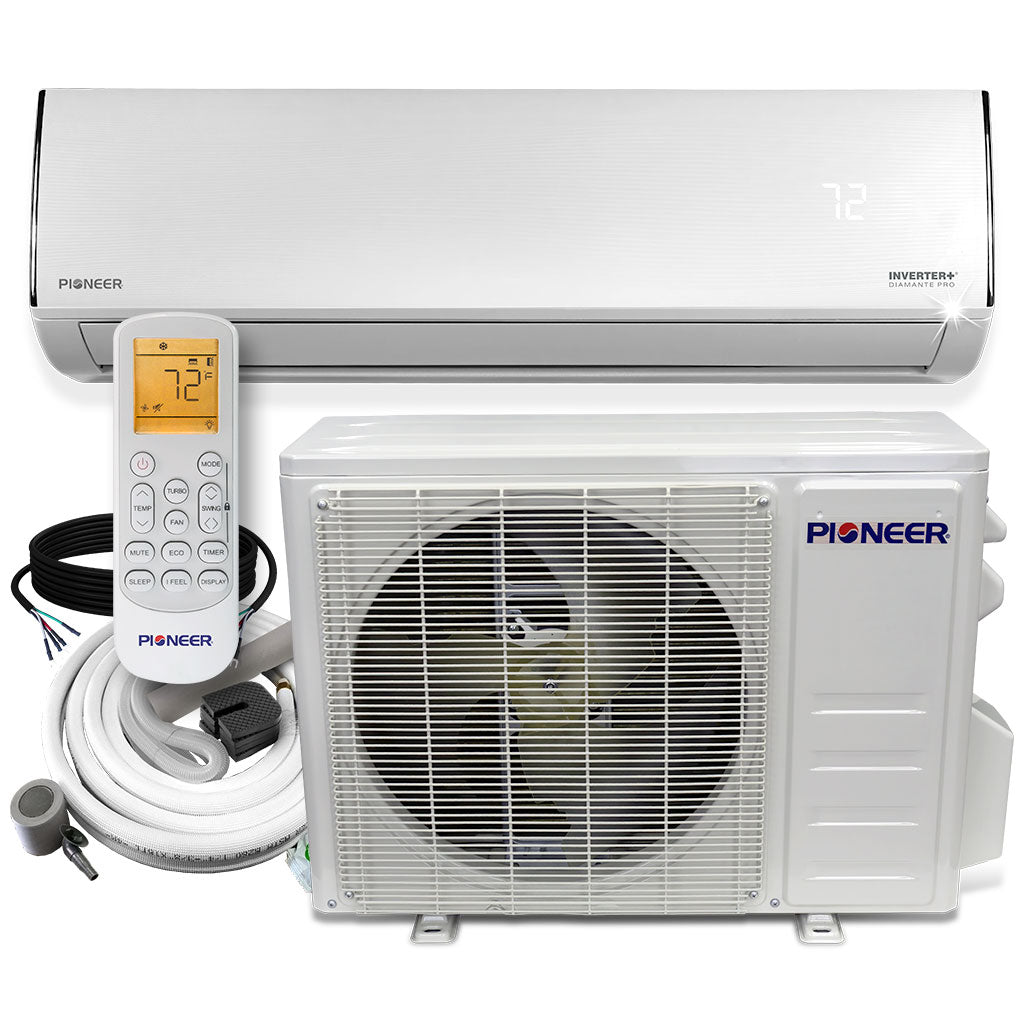

What's Included

  • Indoor Unit
  • Outdoor Unit

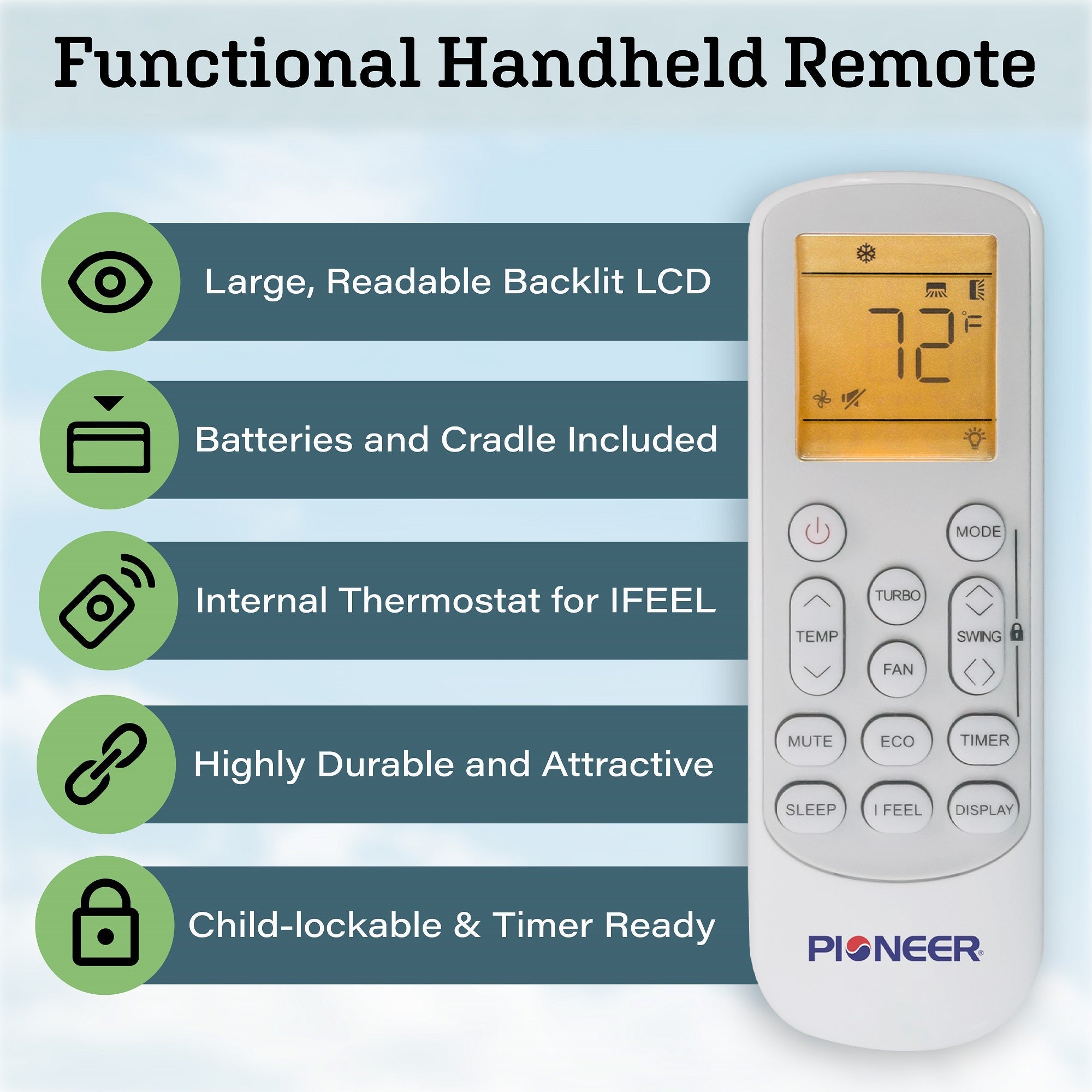

  • Wireless Remote Control (with wall holder and batteries)

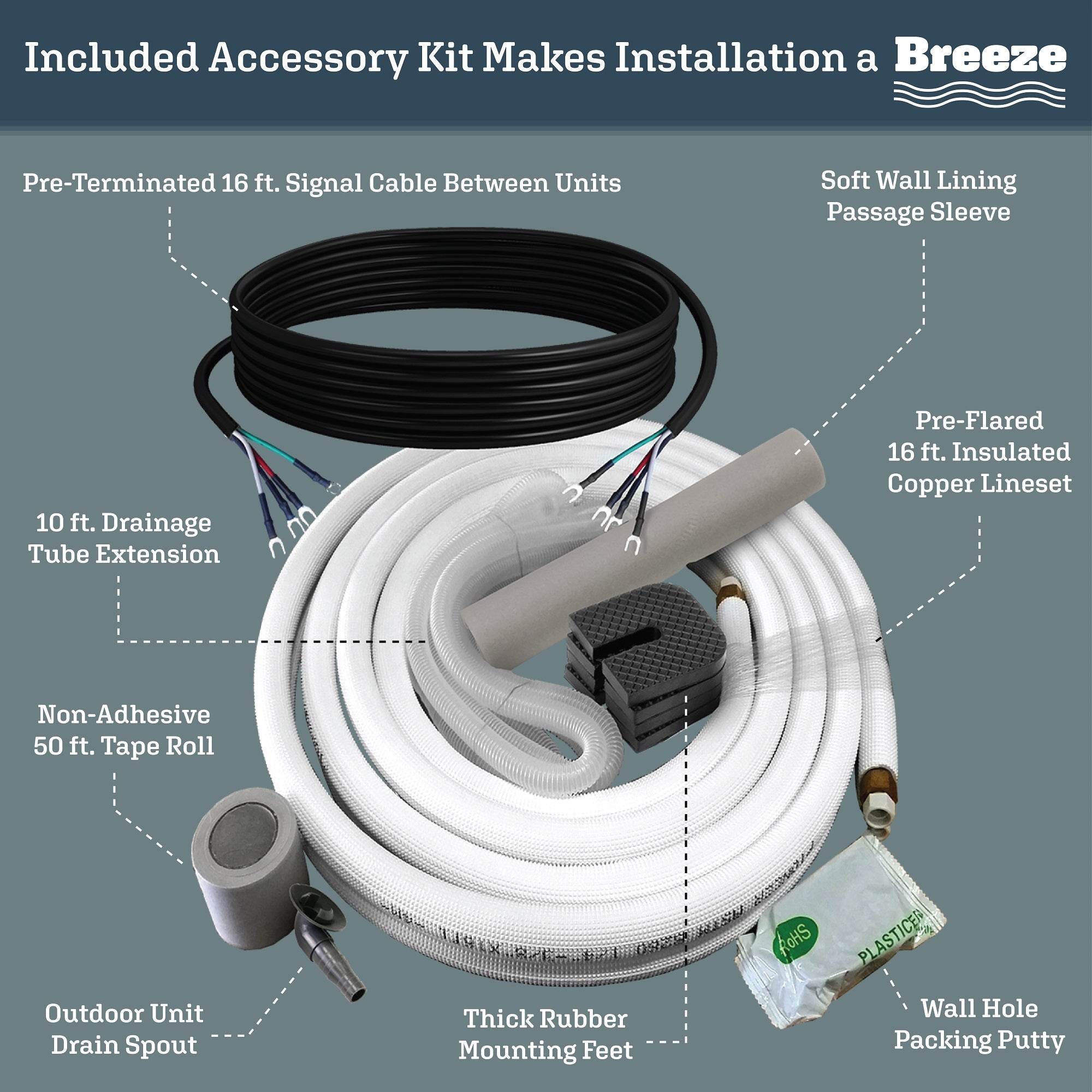

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 7,200~26,400 BTU/h
  • Cooling SEER2: 19.0 BTU/W.h
  • Cooling EER2: 10.0 BTU/W.h
  • Heating Rated Capacity: 24,400 BTU/h
  • Heating Capacity Range: 7320~26,840 BTU/h
  • Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
  • Refrigerant Type: R410A/50.1 oz.
  • Suitable Area: 550~1000 Sq.F

Indoor Unit Data

  • Part Number: WT024GLFI19HLE
  • Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
  • Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
  • Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
  • Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 16-1/2 Inches
  • Net / Gross Weight: 37.5 / 46.3 lbs

Outdoor Unit Data

  • Part Number: YN024GLFI19RPE
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 58.0 dB(A)
  • Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
  • Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
  • Net / Gross Weight: 95.9 / 107.3 lbs

Manuals & Documents
